Tire Size Calculator: Optimize Rolling Diameter and Speedometer Calibration
Technical Definition of Tire Mathematics
A tire size calculator decodes the alphanumeric geometry of an ISO metric tire string (e.g., 225/45R17) to determine its physical dimensions, specifically the overall diameter, section width, sidewall height, and circumference. This computational tool relies on geometric principles to evaluate Plus-Sizing (increasing wheel diameter while maintaining overall tire diameter) and its cascading effects on vehicle dynamics. By calculating the variance between the Original Equipment Manufacturer (OEM) tire circumference and an aftermarket alternative, the tool quantifies the precise percentage of speedometer deviation and mechanical clearance parameters required to prevent suspension interference.
Formula and Methodological Breakdown
ISO Metric tire nomenclature operates on a strict geometric formula. To calculate the critical dimensions, the following mathematical constants and operations apply:

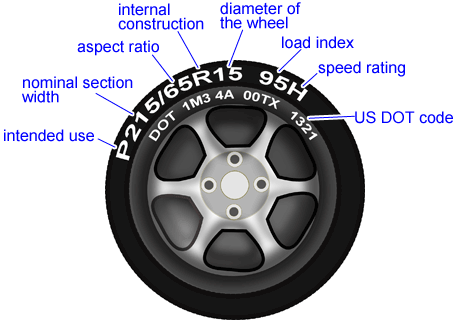

- String Format: [Section Width (mm)] / [Aspect Ratio (%)] R [Wheel Diameter (inches)]
- Sidewall Height (inches): (Section Width × Aspect Ratio) ÷ 25.4
- Overall Diameter (inches): (Sidewall Height × 2) + Wheel Diameter
- Revolutions Per Mile (RPM): 63,360 ÷ (Overall Diameter × π)
- Speedometer Variance (%): ((New Tire Diameter ÷ OEM Tire Diameter) - 1) × 100
Standard Tire Clearance Parameters
| Parameter |
Standard / Limit |
Technical Context |
| Diameter Variance (Safe) |
± 3.0% |
Maximum deviation before triggering ABS/ESC fault codes. |
| Speedometer Error Margin |
± 2.5% |
Legal limit for speedometer accuracy in many jurisdictions. |
| Millimeters to Inches |
÷ 25.4 |
Standard conversion constant for wheel geometry. |
| Inches to Millimeters |
× 25.4 |
Standard conversion constant for section widths. |
| Load Index Adjustment |
+1 to +4 |
Required load index increase for lower-profile sidewalls. |
Operational Context: Plus-Sizing and Speedometer Calibration
When altering wheel and tire configurations—typically for improved lateral stiffness or brake clearance—the primary constraint is maintaining the Original Equipment (OEM) Overall Diameter. Deviating from the OEM circumference alters the rotational speed of the wheel, which directly feeds inaccurate data to the Engine Control Unit (ECU), Anti-lock Braking System (ABS), and Electronic Stability Control (ESC).
Step-by-Step Calculation Example
Objective: Upgrade from a 17-inch OEM wheel to an 18-inch aftermarket wheel while maintaining safe speedometer calibration.
1. Establish OEM Baseline (225/65R17):
- Sidewall Height = (225mm × 0.65) ÷ 25.4 = 5.75 inches
- Overall Diameter = (5.75 × 2) + 17 = 28.50 inches
2. Calculate Alternative Tire (225/55R18):
- Sidewall Height = (225mm × 0.55) ÷ 25.4 = 4.87 inches
- Overall Diameter = (4.87 × 2) + 18 = 27.74 inches
3. Determine System Impact:
- Variance = (27.74 ÷ 28.50) - 1 = -0.0266 (-2.66%)
- Speedometer Impact: At an indicated 60 mph, the vehicle is actually traveling at 58.4 mph.
Because the variance falls within the ±3% safety threshold, this tire size is mechanically viable, though the speedometer will read slightly high.
Technical Limitations and Chassis Interference
A tire size calculator computes linear geometric outputs, but it does not account for dynamic vehicular physics. Tires are not perfect cylinders; they are toroidal structures subject to centrifugal expansion at high speeds and static deflection under load.
Furthermore, dimensional calculations cannot replace physical clearance measurements. Increasing section width (e.g., moving from 225mm to 255mm) introduces the risk of inner fender liner scrub during full steering lock or suspension compression over bumps. Altering the overall diameter by more than 3% changes the effective final drive ratio, which will undeniably skew the calibration of the vehicle's Variable Valve Timing (VVT) and automatic transmission shift points.
Safety and E-E-A-T Verification Disclaimer
This mathematical tool provides theoretical geometric estimations based on standardized ISO metric inputs. Real-world tire dimensions vary significantly across manufacturers, tread patterns, and treadwear ratings. Always verify physical clearances using a straight edge and measuring tape prior to final installation. Any modification to the OEM rolling stock must be structurally verified by a certified automotive technician to ensure compliance with Department of Transportation (DOT) regulations and vehicle-specific suspension tolerances.
