The following are tools to calculate the ohm value and tolerance based on resistor color codes, the total resistance of a group of resistors in parallel or in series, and the resistance of a conductor based on size and conductivity.

Resistor color code calculator

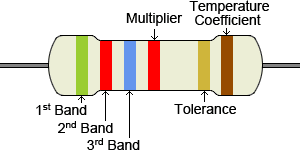

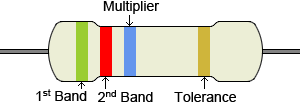

Use this calculator to find out the ohm value and tolerance based on resistor color codes.

The Resistor Calculator: Bridging Theory and Discrete Reality

A resistor calculator determines the specific resistance value required to limit current or drop voltage within a circuit, but its true utility lies in mapping continuous theoretical values to discrete, manufacturable components. Most users assume a resistor has a fixed, singular value. It does not. A "100Ω" resistor is statistically distributed around that mean, bounded by a tolerance range defined by the IEC 60063 standard. Ignoring this distribution leads to circuit failure.

The Discretization Problem

Ohm's Law ($V = IR$) describes a continuous relationship. If you need to drop 5V across a component drawing 13mA, the math demands exactly 384.615Ω. You cannot buy this part. Manufacturers produce components in logarithmic steps known as E-series (E12, E24, E96). The resistor calculator exists to solve a decision problem: Which available discrete value minimizes error while staying within power constraints?

This is not simple arithmetic; it is an optimization problem. Choosing a value too low risks component destruction via overheating. Choosing a value too high results in insufficient current, causing logic gates to fail or LEDs to dim. The calculator bridges the gap between the ideal equation and the physical shelf.

Mathematical Foundation and Power Constraints

The core calculation relies on two distinct equations. First, the resistance determination:

$ R = \frac{V_{source} - V_{load}}{I_{target}} $

Second, and often neglected by novices, is the power dissipation requirement:

$ P = I^2 \cdot R $

Many online tools stop at resistance. A rigorous tool must calculate power to prevent thermal runaway. If your calculation yields 0.25W, using a standard 0.125W (1/8W) resistor will cause it to smoke. You must select a component with a rating significantly higher than the calculated dissipation to account for ambient temperature derating.

EX: The LED Current Limiter Scenario

Scenario: You have a 9V battery and a Red LED (Forward Voltage $V_f = 2.0V$, Target Current $I = 20mA$).

Step 1: Calculate Voltage Drop.
The resistor must absorb the excess voltage.
$V_R = 9V - 2.0V = 7.0V$

Step 2: Calculate Ideal Resistance.
$R = \frac{7.0V}{0.020A} = 350\Omega$

Step 3: Map to E-Series.
350Ω is not a standard value in the common E12 or E24 series. The nearest neighbors are 330Ω and 390Ω.

Option A (330Ω): Current rises to $7.0 / 330 \approx 21.2mA$. Risk: Slightly brighter, shorter LED lifespan.
Option B (390Ω): Current drops to $7.0 / 390 \approx 17.9mA$. Risk: Slightly dimmer, safer for longevity.

Step 4: Verify Power.
Using the safer 390Ω option:
$P = (0.0179A)^2 \cdot 390\Omega \approx 0.125W$.

Decision: A standard 1/8W (0.125W) resistor is running at 100% capacity. This is dangerous. You must select a 1/4W (0.25W) resistor to ensure reliability.

Tolerance Stacking and Sensitivity

Real-world circuits suffer from tolerance stacking. Your 9V battery might actually be 9.6V when fresh. Your resistor might be +5% high. Your LED forward voltage varies by batch. A rigorous analysis treats these not as constants, but as variables with distributions.

If you calculate a value on the edge of a component's power rating, a mere 5% variance in resistance or voltage can push the component into failure mode. Sensitivity analysis suggests that for critical timing circuits or precision voltage references, you should bypass the E12 series entirely and utilize the E96 (1% tolerance) series, despite the higher cost.

Standard Resistor Values (E24 Series Reference)

The calculator effectively filters the infinite number line down to these specific decades. Note the logarithmic spacing; the gap between values widens as the magnitude increases.

Multiplier	Base Values (E24)
x1, x10, x100...	10, 11, 12, 13, 15, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 43, 47, 51, 56, 62, 68, 75, 82, 91

Limitations and Edge Cases

This tool assumes ohmic behavior at constant temperature. It does not account for the Temperature Coefficient of Resistance (TCR). In high-precision environments, a resistor's value shifts as it heats up due to power dissipation. Furthermore, at high frequencies (RF applications), resistors exhibit parasitic inductance and capacitance, rendering the simple DC calculation invalid.

Finally, consider the source impedance. If your voltage source is weak (high internal resistance), the calculated resistor value will interact with the source's internal drop, altering the actual current delivered to the load. Always measure your source voltage under load before finalizing the component selection.
