Ohm’s Law Calculator: Get the Right Voltage, Current, or Resistance Without Costly Electrical Mistakes

An Ohm’s Law calculator gives you an immediate answer for V, I, or R from the relationship V = I R, but the professional value is not speed alone—it is decision quality under constraints: wire heating, component tolerance, and safety margins. The common assumption is that this calculator is “just algebra.” That is false in practice. If you ignore temperature and non-ohmic behavior, your computed current can be off by double-digit percentages, enough to undersize a resistor, trip protection, or overheat wiring.

Why this calculator exists: a decision problem, not a homework problem

Technicians, engineers, and students use this tool because real circuits force trade-offs quickly. You may know supply voltage and target current, and need a resistor value that does not exceed power limits. Or you may need to estimate current draw to pick a fuse and wire gauge. In field settings, this is time-critical. A wrong choice has asymmetrical cost: selecting a resistor with too much resistance usually gives underperformance; selecting too little can damage components in seconds.

Standards and documented practice support this. NFPA 70 (NEC) ampacity tables exist because conductor heating is a real hazard, not a theoretical footnote. IEC 60228 tabulates conductor DC resistance at 20°C because voltage drop and heating calculations depend on it. These are exactly the decisions an Ohm’s Law calculator supports when used correctly.

Mathematical core: notation, equations, and what each output means

Primary relationship

\[ V = I R \] where \(V\) is voltage (volts), \(I\) is current (amperes), and \(R\) is resistance (ohms).

Equivalent solved forms

Unknown	Formula	Use case
Voltage \(V\)	\(V = IR\)	Find required supply or expected drop across a resistor
Current \(I\)	\(I = \frac{V}{R}\)	Estimate load current from known voltage and resistance
Resistance \(R\)	\(R = \frac{V}{I}\)	Choose resistor for target current

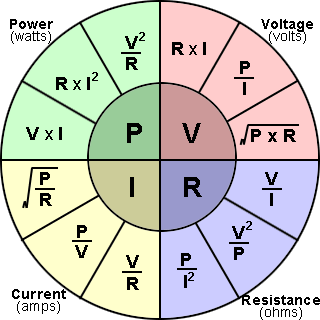

Power \(P\)	\(P = VI = I^2R = \frac{V^2}{R}\)	Check resistor wattage and thermal stress

For metal conductors, resistance changes with temperature: \[ R_T = R_{20}\left[1 + \alpha (T-20^\circ C)\right] \] where \(\alpha\) is the temperature coefficient. For copper, \(\alpha \approx 0.0039/^\circ C\). A 40°C rise increases resistance by about 15.6%.

EX: Step-by-step calculator walkthrough (real design scenario)

Problem. A 24 V DC source drives a load through wiring. You measured total loop resistance (load + wiring) as 10.0 Ω at 20°C. Ambient rises, and conductor temperature reaches 60°C. Find current and power at both temperatures, then choose resistor wattage margin.

1. At 20°C:
   \(I_{20} = \frac{24}{10.0} = 2.40\ \text{A}\)
   \(P_{20} = VI = 24 \times 2.40 = 57.6\ \text{W}\)
2. Adjust resistance to 60°C:
   \(\Delta T = 40^\circ C\), \(\alpha = 0.0039/^\circ C\)
   \(R_{60} = 10.0[1 + 0.0039 \times 40] = 10.0(1.156) = 11.56\ \Omega\)
3. At 60°C:
   \(I_{60} = \frac{24}{11.56} \approx 2.08\ \text{A}\)
   \(P_{60} = 24 \times 2.08 \approx 49.9\ \text{W}\)
4. Interpretation:
   Current drops from 2.40 A to 2.08 A (about 13.3% lower). If your process requires minimum 2.3 A, this design fails at elevated temperature.
5. Component sizing:
   If dissipation is near 50–58 W, using a 60 W resistor is risky in warm enclosures. A 100 W part gains thermal headroom but increases size and cost. This is a classic trade-off: +67% power rating may cut surface temperature substantially, often improving reliability more than it increases BOM cost.

Where naive calculator use fails: documented edge cases

1) Non-ohmic components. LEDs, diodes, and transistor junctions are nonlinear. A single \(R=V/I\) value is only local to one operating point. Use I–V curves or diode models, not a fixed-resistance assumption.

2) Incandescent filaments. Cold filament resistance can be far lower than hot operating resistance, producing high inrush current at switch-on. A steady-state Ohm’s Law result misses startup stress.

3) Meter burden and contact resistance. In low-voltage circuits, measurement setup can distort observed \(V\) and \(I\). Four-wire (Kelvin) methods reduce this error for small resistances.

4) Code and ampacity constraints. Even if \(I=V/R\) is mathematically valid, conductor size must still satisfy code ampacity and allowable voltage drop (NEC/NFPA 70; IEC practices).

Quick decision table: what to optimize and what you give up

Choice	You gain	You lose	Typical numerical effect
1% resistor instead of 5%	Tighter current control	Higher unit cost	Error band shrinks ~5x
Higher supply voltage, same power	Lower current, less I²R loss in wires	More insulation/safety requirements	Doubling V halves I for same P
Larger wire gauge	Lower voltage drop, lower heating	Cost, weight, routing difficulty	Can reduce loop R by >30% over long runs
Higher wattage resistor margin	Lower thermal stress, longer life	Board/enclosure space	2x rating often cuts operating temperature significantly

Related calculators and next decisions

An Ohm’s Law calculator is usually step one. Next tools are predictable: voltage-drop calculator (wire length/gauge), power dissipator calculator (heat rise), resistor color-code/tolerance tool, and fuse-sizing calculator. In AC systems, transition to impedance and power factor calculators, where \(Z\) replaces simple \(R\).

Technical disclaimer on data quality and model limits

Calculator outputs are only as good as inputs and model assumptions. If you estimate resistance from measured \((V,I)\) pairs, small sample sizes bias your slope estimate, and single outliers (bad probe contact, transient load state) can skew \(R\) sharply. Use repeated measurements, inspect residuals, and reject obvious transients. For nonlinear loads, treat Ohm’s Law results as local approximations around a specific operating point, not universal behavior across all voltages and temperatures.
